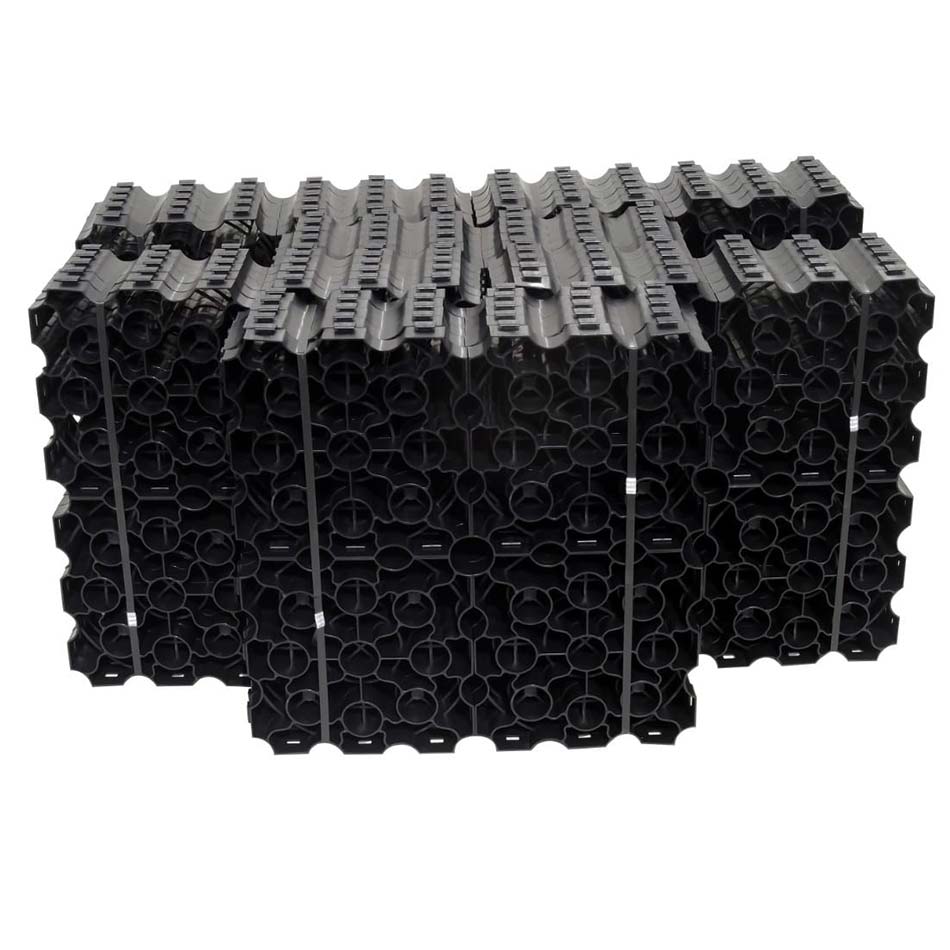

Swim Spa Base Kit – 528cm x 231cm
Delivery only £10 per order to most UK areas
Shop now, pay later.
A foundation kit for swim spas with a foot print of up to 528x231cm
Why go through the labour intensive and difficult process of using concrete or paving slabs when you can use our incredibly strong, easy to install, weather proof, no-rot and permeable swim spa bases!
- Suitable for: Spas up to 528cm x 231cm
- Depth: 40mm
- Number of panels: 116 Panels
- Made from: Recycled Plastic
- Max load: Up to 420 tonnes
- Kit contains: 4 boxes containing 24 X-Grid Panels, 2×1.35m membrane and 5x 3mm Steel u-Pins and 1 box containing 20 X-Grid Panels, 2×1.35m membrane and 5x 3mm Steel u-Pins
£248.51
Not sure how many Hot Tub base panels you need?
panels.
Click to add these to your cart.
Click here to ask a question
What are your swim spa bases suitable for?
Our plastic spa bases are incredibly effective and versatile. They are a suitable foundation for almost all hot tubs and swim spas. Please contact us if you are unsure of compatibility.
What sub-base do I need under my swim spa base?
We recommend you prepare the ground below your base with approximately 100mm of a compact hard base (type 1 or type 3), a weed-suppressing membrane and sand to level.
What is the difference between compact hard base type 1 or type 3?
Compact hard base, type 1 is much finer and can occasionally dust while the compact hard base, type 3 is larger and more permeable.
Can I put the base straight onto grass or soil?
We recommend not installing directly onto grass or soil but instead, install onto a compact hard base as it creates a sturdy, even base. Soil or grass can and will most likely will absorb water leading to sinking and creating an uneven sub-base for your spa base.
Can your plastic bases be installed on to concrete slabs/pads?
Yes, they can be installed onto concrete slabs or pads as long as the existing ground is strong and level. The base will allow airflow under your spa and elevate it away from any potential surface water.
How much gravel or aggregate should I use to fill my base?
Approximately 8kg of gravel or aggregate is required to fill each panel, or 72kg per m².
What size gravel should I use?
We recommend using anything up to 20mm in size.
Does the base need to be filled with gravel?
Our bases are more than strong enough without a gravel fill, able to withstand up to 420 tonnes per sqm. The gravel can be used to compact and enforce even more whilst also being a decorative finish.
Does this product come with pins or membrane?
Yes, our swim spa base kits come with pins and a sheet of membrane.
Can the plastic base panels be cut to size?
Yes they can be cut and we recommend doing so with a fine tooth saw.
Do I need pegs or anchors to secure my base?
Pegs and anchors to secure you base are only necessary when installing on areas which have a gradient over 12%.
How do I know which side of the panel to put down?
The bottom of the base has ‘X-Grid’ written on it, indicating the face you put on the ground.
Can the base panels be stacked on top of each other?
No, they are not designed to be stacked.
Where can I find installation instructions?
Install guides can be found on the downloads tab. In addition, more information on installations can be found through our blogs and YouTube videos.
Can I create a grass base with the use of your swim spa base?
Yes, grass can grow in the panels cells when correctly filled with soil and seed.
Do your plastic swim spa bases have a warranty?
Yes, our bases have a 10 year manufacturer warranty.
Can I be guaranteed the same colour all throughout my product?
Our products are new generation, manufactured entirely from post-consumer recycled plastic; this means you may occasionally find very slightly different shades of colour.
How much is delivery?
The cost for delivery can be seen when you add your product to basket and at checkout.
What Is a Plastic Swim Spa Base Kit
Our Eco-Friendly plastic swim spa bases are manufactured here in the UK and made from 100% recycled plastic, as the base is plastic it is UV and weather-resistant, so unlike other foundations and bases it will not rot or break down over time cutting down on your future maintenance costs. With an open-cell structure provides a solid base that is able to hold up to 420 tonnes per square meter whilst allowing overflowed water and rain to drain naturally away from your swim spa to ensure there is no external water damage. Also included on the base is an interlocking slot and peg system which makes every installation a quick and easy process. Once installed you can fill your base with decorative gravel or a soil/seed mix for a grass effect.
Will Your Base Work With My Swim Spa?
Yes, our fully recycled plastic swim spa bases are designed and manufactured to be suitable for use with almost all swim spas no matter the make or model. To check if your swim spa is compatible with this base, simply compare the spa measurements with the dimensions on our product listing. If this base is not suitable, worry not, we have a number of different sized swim spa bases available and one will certainly fit your swim spa. For some help in finding your base, you can call us, live chat us or leave a message to discuss your specific needs which we will be able to meet.
For real customer examples of our spa bases being used, read our swim spa base blogs.
To learn how to install your own swim spa base, read our Install Guide.
| Weight | 63.84 kg |
|---|---|
| Dimensions | 5280 × 2310 × 40 mm |
